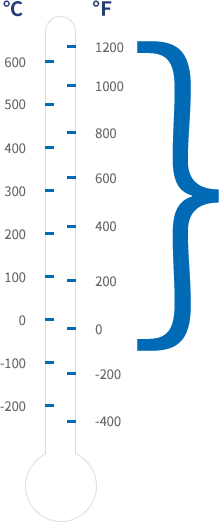

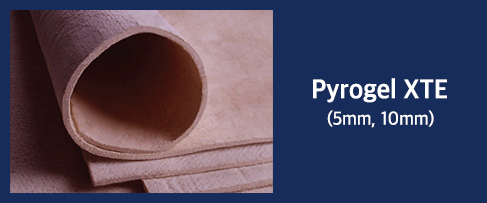

Pyrogel XTE(5mm, 10mm) -200℃ to 650℃
- 펄라이트, 칼슘, 실리케이트, 암면 또는 미네럴 울보다 열 전달 계수가
3 또는 5배 낮습니다. - 타워, 또는 대형 파이프 설치 시공이 편리합니다.
- 발수 기능(Water repellant)
- 내구성이 우수하며 열 차단 성능이 시간이 경과하여도 유지됩니다.

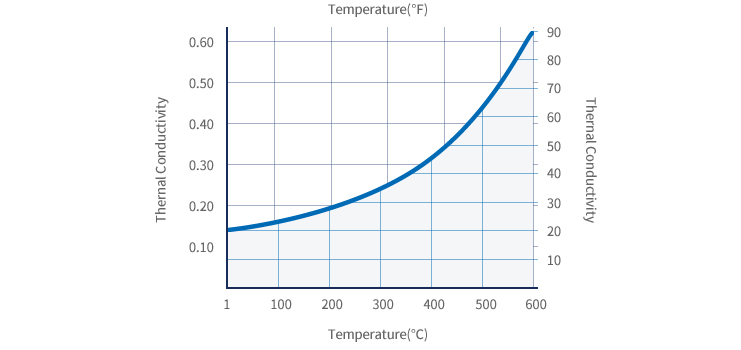

Thermal Conductivity
| Mean Temp. | ℃ | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|
| ℉ | 32 | 212 | 392 | 572 | 752 | 932 | 1112 | |
| k | mW/m-k | 20 | 23 | 28 | 35 | 46 | 64 | 89 |
| BTU-in/hr-ft2-℉ | 0.14 | 0.16 | 0.19 | 0.24 | 0.32 | 0.44 | 0.62 |
Thermal conductivity measurements taken at a compressive load of 2 psi
Specification Compliance and Performance
| Test Procedure | Property | Results |
|---|---|---|
| ASTM C 165 | Compressive Strength | Stress at 10% strain = 14.8 psi(102 kPa) Stress at 25% strain = 26.6 psi(183 kPa) |
| ASTM C 356 | Linear Shrinkage Under Soaking Heat | < 1.3% @ 1200℉(650℃) |
| ASTM C 411 | Hot Surface Performance | Passed |
| ASTM C 447 | Estimation of Maximun Use Temperature | 1200℉(650℃) |
| ASTM C 592-04 (Section 11.11, Modified) |
Heat and Vibration Aging | -0.19% mass change after 6 hr vibration |
| ASTM C 795 | Insulation for Use Over Austenitic Stainless Steel | Passed |
| ASTM C 1101 | Classifying the Flexibility of Mineral Fiber Blankets | Class: Resilient Flexible |
| ASTM C 1104 | Vater Vapor Sorption | 2.25% (by weight) |
| ASTM C 1338 | Fungal Resistance of Insulation Materials | Passed |
| ASTM C 1511 | Liquid Water Retention After Submersion | 4% (by weight) |
| ASTM E 84 | Surface Burning Characteristics | Flame Spread Index = 0 Smoke Developed Index = 0 |
| ASTM E 1354 | Cone Calorimetry | No ignition at 50 kW/m2 |
| BS EN 13501-1:2007 | Reaction to Fire Performance | Passed Euroclass A2 |
| ISO 1182:1990 | Non-Combustibility | Meets criteria outlined in ISO 1182:1990 |
